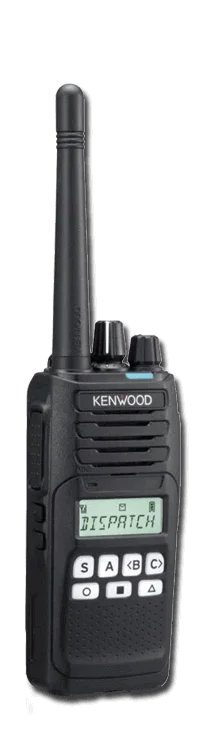

KENWOOD NX-1200NV/1300NV

KENWOOD

NX-1200NV/1300NU (K3/K6)

ONE-“K”-FITS-ALL: A SINGULAR SOLUTION

If you are thinking of harnessing the latest digital protocols – NXDN or DMR – to enhance business efficiency or FM analog for its simplicity, the NX-1200/1300 has you covered. KENWOOD’s One-“K”-Fits-All solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD. Other features include a 7-color LED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most grueling conditions, like the cockpit of a racing car. Thanks to KENWOOD’s extensive experience with professional systems, reliability is second to none. So, whatever your radio requirements, KENWOOD’s NX-1200/1300 offers a single platform that’s right for you.

Frequency Band:
VHF/UHF

Frequency Range:
136-174MHz, 450-520MHz, 400-470MHz

Power Output:
5W / 4W / 1W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
Approx. 14.5 hours

Number of Channels/Zones:
260/128

Channel spacing:
12.5 / 15 / 25 30 kHz, 12.5 / 25 kHz Analog - 6.25 / 12.5 kHz Digital

Dimensions W x H x D (with standard battery)
2.13 x 4.84 x 1.32 in

Weight (with standard battery)
10.58oz

Keypad / Keys
Full Keypad Models w/ LCD

Display
13 seg, 8 character LCD

Operating temperature
-22 F to + 140F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55, IP67 (Optional)

  • Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM analog protocols
  • Direct and intuitive LCD with a full keypad enclosure
  • Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
  • Large 7-Color LED indicator on the top panel
  • Selective Power-on LED
  • Selective Call Alert LED
  • Battery Level Indication
  • Multi-status function indication
  • RF output power 5W both on VHF/UHF
  • Mixed Zone - analog and digital
  • Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable digital processor
  • Audio Equalizer: Flat, High, Low
  • Auto Gain Control: On, High, Low, Off
  • Noise Suppressor
  • Microphone type settings
  • Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
  • VOX & PTT –triggered Semi- VOX, Voice-operated TX
  • Emergency Function: Customizable Emergency Profile
  • Lone Worker
  • Max / Min Volume setting & Volume control
  • Voice Announcement
  • Remote Stun / Kill / Check
  • Front Panel Programming Mode
  • Electronic Serial Number (ESN)
  • MIL-STD-810 C/D/E/F/G
  • IEC 60529 - IP54/55/67*
    *Radio must be installed with KNB-84LA
KRA-22M

KRA-22M

VHF low-profile antenna 148-162 MHz

KRA-22M2

KRA-22M

VHF low-profile antenna 162-174 MHz

KRA-22M3

KRA-22M

VHF Low-profile helical antenna 136-150 MHz

KRA-23M

KRA-23M

UHF low-profile antenna 450-490 MHz

KRA-23M2

KRA-23M2

UHF low-profile antenna 470-520 MHz

KRA-23M3

KRA-23M3

UHF Low-profile helical antenna 403-430 MHz

KRA-26M

KRA-26M

VHF helical antenna 146-162 MHz

KRA-26M2

KRA-26M2

VHF helical antenna 162-174 MHz

KRA-26M3

KRA-26M3

VHF helical antenna 136-150 MHz

KRA-27M

KRA-27M

UHF whip antenna 440-490 MHz

KRA-27M2

KRA-27M2

UHF whip antenna 470-520 MHz

KRA-27M3

KRA-27M3

UHF whip antenna 400-450 MHz

KRA-41M

KRA-41M

VHF stubby antenna 148-162 MHz

KRA-41M2

KRA-41M2

VHF stubby antenna 162-174 MHz

KRA-41M3

KRA-41M3

VHF stubby antenna 136-150 MHz

KRA-42M

KRA-42M

UHF stubby antenna 440-490 MHz

KRA-42M2

KRA-42M2

UHF stubby antenna 470-520 MHz

KRA-42M3

KRA-42M3

UHF stubby antenna 403-430 MHz

KNB-45L

KNB-45L

2000 mAh, Li-ion battery - requires KSC-35K/SK charger

KNB-69L

KNB-69L

2550 mAh, Li-ion battery - requires KSC-35K/SK charger

KNB-53N

KNB-53N

Ni-MH BATTERY PACK (7.2 V/1400 mAh)

No Image Available

KNB-82LC

Li-ion Battery Pack (7.4 V/1900 mAh, Intrinsically Safe)

KSC-35SK

KSC-35S

Rapid Charger (for Li-ion KNB- 45L/69L/82LC)

KSC-43K

KSC-43

Rapid Charger (for Li-ion KNB-45L/69L/82LC & Ni-MH KNB-53N)

KSC-356A

KSC-356A

Multiple Charger (6-pocket for Li-ion KNB-45L/69L/82LC)

KSC-35SCR

KSC-35SCR

Charger Pocket (6-pocket for KMB-35A)

No Image Available

KMB-35A

Multi Charger Adapter (for KSC-35SCR)

KVC-22

KVC-22

110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)

KBH-10

KBH-10

Spring action belt clip

EMC-11/12

EMC-11/12

- Clip Microphone with Earphone (STD, Ear-Hanging)

KHS-35F

KHS-35F

Headset (Ear-Hook)

KMC-45D

KMC-45D

Speaker Microphone

NX-1200NV and NX-1300NU

  • NX-1200NVK3 VHF (136-174MHz), 5W, 260 CH, LCD & Full Keypad, NXDN/Analog
  • NX-1300NUK3 UHF (450-520MHz), 5W, 260 CH, LCD & Full Keypad, NXDN/Analog
  • NX-1300NUK6 UHF (400-470MHz), 5W, 260 CH, LCD & Full Keypad, NXDN/Analog
