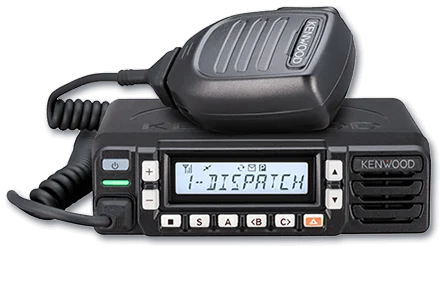

KENWOOD NX-1700H/1800H

KENWOOD

NX-1700HNV/1800HNU

SOUND PERFORMANCE, SMOOTH OPERATION

Emulating the distinguished NX-3000 and NX-5000 series, the NX-1700H/1800H mobile radio supports multiple protocols including NXDN™ and DMR as well as mixed digital & FM analog operation. As it’s packed with all the features essential for numerous enterprise and operation-critical applications. It’s also equipped with optimizable TX/RX audio quality, and a customizable front panel that prioritizes simple convenience: operational status is clear at a glance from the white backlit LCD display and 7-color LED indicator.

Frequency Band:
VHF

Frequency Range:
136-174 MHz VH

Power Output:
50W

Number of Channels/Groups/Zones:
260 Ch / 128 Zones

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D
6.34 x 1.69 x 6.62 in

Weight
2.67 lbs

Display
Easy visible, white backlit LCD display: Alphanumeric, 10-digit, 13-character frame (aliases and icons)

Operating temperature
-22ºF to +140ºF

Mil spec
MIL-STD-810 C/D/E/F/G/H

IP Standards
IP54

  • “One Radio” with Multi-protocol Support: Designed to operate under an NXDN or DMR digital,and FM analog protocols
  • Easy visible, white backlit LCD display: Alphanumeric, 10-digit, 13-character frame (aliases and icons)
  • 7-color LED indicator used to display various radio status
  • Renowned KENWOOD Audio Quality: 6 W (max)loud audio and optimizable TX/RX audio profile: Audio Equalizer, Auto Gain Control (TX/RX) and Microphone type settings
  • Max. 260 Channels per radio, 128 Zones per radio, and 250 Channels per zone
  • Various scan functions: Dual/Single Priority scan, Multi/Single Zone scan and more
  • Orange-colored Emergency button & Customizable
  • Emergency functions
  • GPS connectivity
  • Horn Alert and Public Address
  • Ignition Sense
  • 3.5 mm audio jack for external speaker
No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles
(excludes TK-5x10/6110 series).
(mobile mounting hardware included)

KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.

KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)

No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

GPS15XL-W

GPS15XL-W

Garmin Internal GPS Receiver Board for NEXEDGE/FleetSync AVL

GA25MCX

GA25MCX

Garmin On-dash Style Magnetic base GPS Antenna for GPS15XL-W

KCT-73

KMC-65M

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug)

KCT-74

KMC-66M

MIL-SPEC Standard electret mobile microphone with 12 keypad (8-pin mod. plug)

KES-8K

KES-8K

External speaker, 10W, 4-Ohm, 3.5mm phone plug

KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.

KCT-18

KCT-18

Ignition sense cable (requires KCT-60M Acc. Cable Option)

KCT-60

KCT-60M

DB15-to-15pin Molex Adapter Cable

KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).

KMB-10

KMB-10

Key lock adapter

NX-1700HNV

  • NX-1700HNVK 136-174 MHz VHF 50W, 260 Ch / 128 Zones
