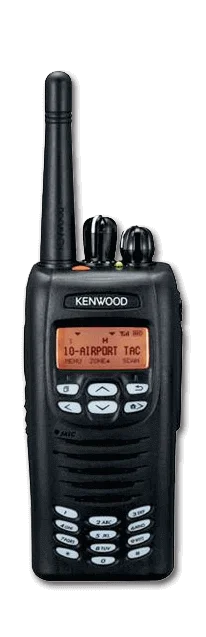

Despite their compact lightweight design, the KENWOOD NX-200G / 300G handheld radios are fully equipped for both digital and analog operating modes. The clear backlit display and ergonomic layout of the controls enhance operating ease, while the rugged MIL-STD construction ensures all-weather reliability.
KENWOOD
NX-200G/300G
Frequency Band:
UHF, VHF
Frequency Range:
136-174MHz, 450-520MHz, 400-470MHz
Power Output:
5W / 1W
Standard battery chemistry type:
Battery life (based on a 5-5-90 duty cycle):
Approx. 14.5 hours
Channel spacing:
12.5 / 15 / 25 30 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D (with standard battery)
2.28 x 5.02 x 1.63
Weight (with standard battery)
13.23oz
Keypad / Keys
12-Key Keypad Models
Display
14-Character Alphanumeric Aliases
Operating temperature
-22 F to + 140F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55, IP67 (Optional)
General Features
- 5 W (136-174 MHz) Models
- 5 W (400-470, 450-520 MHz) Models
- 512 CH-GID / 128 Zones
- 12-Key Keypad Models
- 14-Character Alphanumeric Aliases
- Backlit Dot Matrix LCD
- Function/Status LCD Icons
- Multi-Language Display
- Date, 12/24 Hour Time Clock
- Transmit/Busy/Call Alert/Warn LED
- On/Off Volume Knob
- 16-Position Mechanical Selector
- 6 Front Programmable and Menu Keys
- 2 Side Programmable Keys
- 500 mW Speaker Audio
- Emergency Call Features
- MIL-STD-810 C/D/E/F/G
- IP54/55 Water/Dust Intrusion
- Intrinsically Safe Option
- VGS-1 Voice Guide/ Voice & GPS Data Storage Option
- P25 Upgradeable
- MPT Options
Brochure
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M2 UHF low-profile antenna 470-520 MHz |
| KRA-23M3 UHF Low-profile helical antenna 403-430 MHz |
 | KRA-25 High-gain VHF helically loaded whip antenna 148-162 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
| KRA-27M3 UHF whip antenna 400-450 MHz |
| KRA-28 Broadband VHF helically loaded whip antenna 140-170 MHz |
| KRA-29 Broadband UHF Whip Antenna 380-430 MHz |
 | KRA-43GM VHF helical antenna 146-162 MHz (w/GPS) |
| KRA-43GM2 VHF helical antenna 162-174 MHz (w/GPS) |
| KRA-43GM3 VHF helical antenna 136-150 MHz (w/GPS) |
 | KRA-44GM UHF helical antenna 440-490 MHz (w/GPS) |
| KRA-44GM2 UHF helical antenna 470-520 MHz (w/GPS) |
| KRA-44GM3 UHF helical antenna 400-450 MHz (w/GPS) |
 | KBP-7 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-47L 1950 mAh, Li-ion battery - requires KSC-32/326K/326AK charger |
 | KNB-48L 2550 mAh, Li-ion battery - requires KSC-32/326K/326AK charger |
 | KNB-50NC 2000 mAh, Ni-MH battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
 | KNB-72LC-CSA-US 1880 mAh, Li-ion battery - requires KSC-32/326K/326AK charger [CSA-us Intrinsically Safe Option] |
 | KSC-32 Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC |
 | KSC-326AK Rapid-rate 6-unit charger CEC Compliant |
 | KVC-15 Rapid-rate DC vehicular charger adapter for the KSC-32 (chargers not included; includes KSC-mobile bracket & cigarette lighter cable DC adapter) |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
 | KBH-11 Spring action belt clip (2.5") |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-137ST Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154) |
| KLH-148K Heavy-duty leather case for NX-200/300/TK-5220/5320 (Non DTMF keypad models) |
| KLH-148K2 Heavy-duty leather case for NX-200/300/TK-5220/5320 (DTMF keypad models) |
| KLH-149K Nylon carrying case for NX-200/300/TK-5220/5320 (Non DTMF keypad models) |
| KLH-149K2 Nylon carrying case for NX-200/300/TK-5220/5320 (DTMF keypad models) |
| KLH-6SW Leather swivel belt loop / detachable swivel D-Ring back |
| KCT-51 Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory] |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
| KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KMC-40 MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory] |
| KMC-41M MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-47GPSD GPS Speaker Microphone [Intrinsically Safe Approved Accessory] |
 | KMC-51DM MIL-SPEC, IP54/55 DSP Digital Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
 | KMC-52 MIL-SPEC, IP67 (Immersion) DSP Digital Noise-canceling Speaker Mic |
| KWD-OH20-NX Orange Housing Kit for NX-x00 portables (6 Control Keys Version Only) |
| KWD-YH20-NX Yellow Housing Kit for NX-x00 portables (6 Control Keys Version Only) |
- NX-200GK 136-174MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
- NX-200GK2 136-174MHz 5W, 14 characters Alphanumeric LCD, Full Keypad
- NX-300GK 450-520MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
- NX-300GK2 400-470MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
- NX-300GK3 450-520MHz 5W, 14 characters Alphanumeric LCD, Full Keypad
- NX-300GK4 400-470MHz 5W, 14 characters Alphanumeric LCD, Full Keypad
- NX-200-ISCGK 136-174MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
- NX-200-ISCGK2 136-174MHz 5W, 14 characters Alphanumeric LCD, Full Keypad
- NX-300-ISCGK 450-520MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
- NX-300-ISCGK2 400-470MHz 5W, 14 characters Alphanumeric LCD, 6 Control Keys
