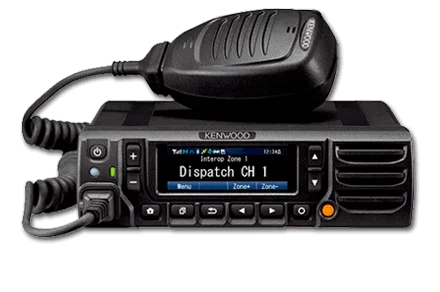

The KENWOOD NX-5700H/NX-5800H digital mobile radio decks operate across more than one mode, including NXDN, P25 and analog FM. They are also available with dual remote-control head and multi-band (multi RF deck) control options, making these highly advanced radios ideal for mission-critical users.
KENWOOD
NX-5700H/5800H
Frequency Band:
Low Band / VHF Radio
Frequency Range:
39-50 MHz / +136-174 MHz
Power Output:
110W
Number of Channels/Groups/Zones:
1024 Channels / 128 Zones
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
N/A
Weight (with standard battery)
N/A
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-22°F to +140°F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
- Multi-Digital Operation in NXDN/P25
- Support NX-5000 Remote Control Head Options
- Multi-RF Deck Configuration Available (Lovband, VHF, 380-470, 450-520, 7&800)
- Built-in Micro USB A-B Interface
- Horn Alert / Public Address
- Built-in GPS Receiver
- Built-in Bluetooth® Module
- Built-in 56-bit DES Encryption (4 keys programmable by KPG-D1N)
- Optional 256-bit AES Encryption
- 12 Watt Audio Output
- DB-25 & Molex 9-pin Accessory Connector
- Active Noise Reduction (ANR)
- KPG-D1N Windows® FPU
- Flash Firmware Upgrading
 | KCT-23M2 DC Cable (75/110W Dash mount) |
| KCT-23M4 DC Cable (75/110W Remote mount) |
 | KCT-71A100 KCT-71A Extended Control Head Cable (up to 100 ft. max.) |
| KCT-71A50 KCT-71A Extended Control Head Cable (up to 50 ft. max.) |
| KCT-71M2 Remote Control Cable (17 feet) |
| KCT-71M3 Remote Control Cable (25 feet) |
| KCT-71M4 Remote Control Cable (1.6 feet) |
 | KCT-77M2 Remote Control Cable for KCH-21RM (17 feet) |
| KCT-90USB USB Mobile Cable for SD Card Direct Access Support |
| KCT-91MRS DB25 Cable for Mobile Relay Station (Conventional Only) |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
 | KCT-73MIC External Microphone kit w/9.8 ft. cord for Safer Driving |
 | KCT-74PTT External PTT Switch kit w/9.8 ft cord for Safer Driving |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KCT-72 External Accessory Connection Cable for KRK-18HM |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
| KMB-36 Mounting Bracket for NX-5000 High Power RF Deck |
| KRA-40GM GPS Antenna |
| KCH-19M Basic Control Panel |
| KCH-20RM Full Featured Remote Control Panel. No Internal Speaker included. KES-5/3 is required. |
| KCH-21RM Hand Held Control Head for Long Cable |
| KCH-21RM-S Hand Held Control Head with Short Cable (4 ft.) |
| KRK-14HM Control Head Interface Kit for KCH-19M |
- NX-5700HBF (110W, 136-174 MHz) RF Deck Only, NXDN Conv/Trunk & P25 Conv
(Remote Control Head, Microphone, Bracket, DC Cable not included) - NX-5800HBF (100W, 450-520 MHz) RF Deck Only, NXDN Conv & P25 Conv
(Remote Control Head, Microphone, Bracket, DC Cable not included) - NX-5800HBF2 (100W, 380-470 MHz) RF Deck Only, NXDN Conv & P25 Conv(
(Remote Control Head, Microphone, Bracket, DC Cable not included)
