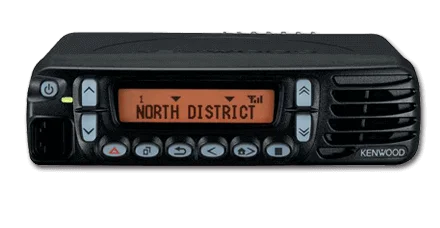

As smart in operation as they are in looks, the KENWOOD NX-700 and NX-800 radios feature everything necessary to take full advantage of both digital and analog operating modes. Mobile users will appreciate the large dot-matrix LCD, intuitive controls and multi-scan capabilities.
KENWOOD
NX-700/800
Frequency Band:
VHF, UHF
Frequency Range:
136-174 MHz / 400-470, 450-520 MHz
Power Output:
30W- 50W VHF - 30W - 45W UHF
Number of Channels/Groups/Zones:
512 Channels / 128 Zones
Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital
Dimensions W x H x D
6.30 x 1.77 x 6.18 in
Weight
3.04 lb
Keypad / Keys
No Keypad
Display
14-Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
- Dash & Remote Mount
- Dual Control Head Remote Mount
- 14-Character Alphanumeric Aliases
- Backlit Dot Matrix LCD
- Function/Status LCD Icons
- Multi-Language Display
- Date & 12/24 Hour Time Clock
- Transmit/Busy/Call Alert/Warn LED
- On/Off Power Control
- 4 Up/Down Selectors
- 6 Front PF Keys
- Emergency/AUX Key
- 4W Speaker Audio
- DB-25 Accessory Connector
- 9 Programmable AUX I/Os
- 2 Programmable AUX Outputs
- KPG-111D Windows® FPU
- Flash Firmware Upgrading
- PC Serial Interface
- SDM Manual Input
- Transparent Data Mode1
- GPS Receiver Option
- VGS-1 Voice Guide / Voice & GPS Data Storage Option
Brochures
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
| KAP-2 Horn Alert/P.A. Relay Option |
| KCT-23M DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads) |
| KCT-23M3 DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads) |
 | KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line). |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
 | KRK-10 Remote Control Kit (a remote control cable (23 ft) is included). |
- NX-700K 136-174 MHz 30W, 512 CH / 128 Zone
- NX-700HK 136-174 MHz 50W, 512 CH / 128 Zone
- NX-800K 450-520 MHz 30W, 512 CH / 128 Zone
- NX-800K2 400-470 MHz 30W, 512 CH / 128 Zone
- NX-800HK 450-520 MHz 45W, 512 CH / 128 Zone
- NX-800HK2 400-470 MHz 45W, 512 CH / 128 Zone
