Over 7 times faster and with 15 times more capacity than the previous models, the KENWOOD NXR-5700 and NXR-5800 NEXEDGE repeaters represent a breakthrough in performance. Extensive data storage means they can support everything from analog/digital conventional systems up to a highly sophisticated NEXEDGE Generation2 (Gen2) multi-site digital trunked network. And further adding to their future-proof credentials is upcoming support for Digital Simulcast. Stay ahead of the curve, with cutting-edge communications.

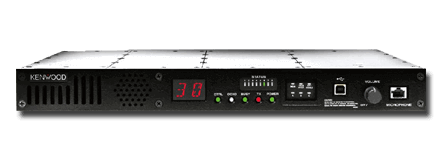

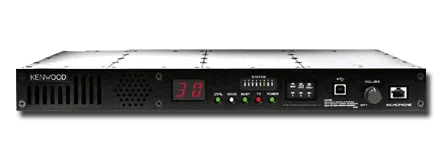

KENWOOD
NXR-5700/5800
Frequency Band:
VHF, UHF
Frequency Range:
136-174 MHz (NXR-5700)
450-520 MHz 400-470 MHz 350-400 MHz (NXR-5800)
Power Output:
5/5/0.5 W
Number of Channels/Groups/Zones:
1 Channel
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 7.5 / 12.5 / 15 kHz, 6.25 / 12.5 kHz Digital
Dimensions W x H x D
19.02 x 1.73 x 13.03 in
Weight
11 lb
Keypad / Keys
No Keypad
Display
Two-Digit Numeric Display
Operating temperature
-22°F to +140°F
Mil spec
N/A
IP Standards
N/A
- NXDN Conventional / Trunk
- Conventional
- Conventional IP Network
- NEXEDGE Type-C Network
- NEXEDGE Type-C Gen2 Network
- Mixed Mode Operation - Digital / Analog FM
- Power Output - 25 W / 0.5 Watts (100% Duty)
- IP LAN/WAN Connectivity
- Ethernet Network Interface
- SNMP Protocol Ready
- Frame Error Rate (FER) / RSSI Output
- Built-In 0.5 ppm TCXO
- 70 MHz UHF Coverage
- 6.25 & 12.5 kHz Bandwidth
- Two-Digit Numeric Display
- LED Status Indicators
- USB 2.0 Type-B Interface
- UID & GID Validation
- NXR Over-the-Air Alias
- 6-Programmable Function Keys
- 0.3 W Front Panel Speaker / 3-W External Speaker Audio
- Remote Termination Interface
- Programmable AUX I/O's
- DTMF Remote Control
- Remote System Firmware Updates
- Program / Modem Interface
- Digital Voting
- RF Link
- Digital Simulcast
Brochures
No Accessories List at present
Please Contact Us for more information
- NXR-5700K Repeater, Digital, VHF, 136-174MHz, 25W, 0.5ppm TCXO built-in
- NXR-5800K Repeater, Digital, UHF, 450-520MHz, 25W, 0.5ppm TCXO built-in
- NXR-5800K3 Repeater, Digital, UHF, 400-470MHz, 25W, 0.5ppm TCXO built-in
