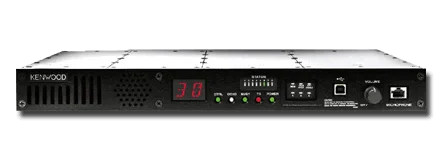

Over 7 times faster and with 15 times more capacity than the previous models, the KENWOOD NXR-5900 and NXR-5901 NEXEDGE repeaters represent a breakthrough in performance. Extensive data storage means they can support everything from analog/digital conventional systems up to a highly sophisticated NEXEDGE Generation2 (Gen2) multi-site digital trunked network. And further adding to their future-proof credentials is upcoming support for Digital Simulcast. Stay ahead of the curve, with cutting-edge communications.
KENWOOD
NXR-5900/5901
Frequency Band:
800MHz/900MHz
Frequency Range:
806-825 MHz, 851-870 MHz (NXR-5900)
896-902 MHz, 935-941 MHz (NXR-5901)
Power Output:
360 mW to 100 mW
Number of Channels/Groups/Zones:
1 Channel
Channel spacing:
25/12.5 kHz Analog
12.5/6.25 kHz Digital
Dimensions W x H x D
19.02 x 1.73 x 13.03 in
Weight
11 lb
Keypad / Keys
No Keypad
Display
Two-Digit Numeric Display
Operating temperature
-22°F to +140°F
Mil spec
N/A
IP Standards
N/A
- 0.36/0.1 W Exciter Output Power
- USB 2.0 Type-B Interface
- IP LAN/WAN Connectivity
- Ethernet Network Interface
- 6 Programmable Function Keys
- 0.3 W Front Panel Speaker
- 3 W External Speaker Audio
- Audio Volume Control
- Program / Modem Interface
- Remote Termination Interface
- Programmable AUX I/O's
- DTMF Remote Control
- Flash Firmware Upgrading
- Remote System Firmware Updates
- Telephone Interconnect Option
NOTE: The NXR-5900/5901 works only as a duplex repeater. This product does not support simplex base operation.
